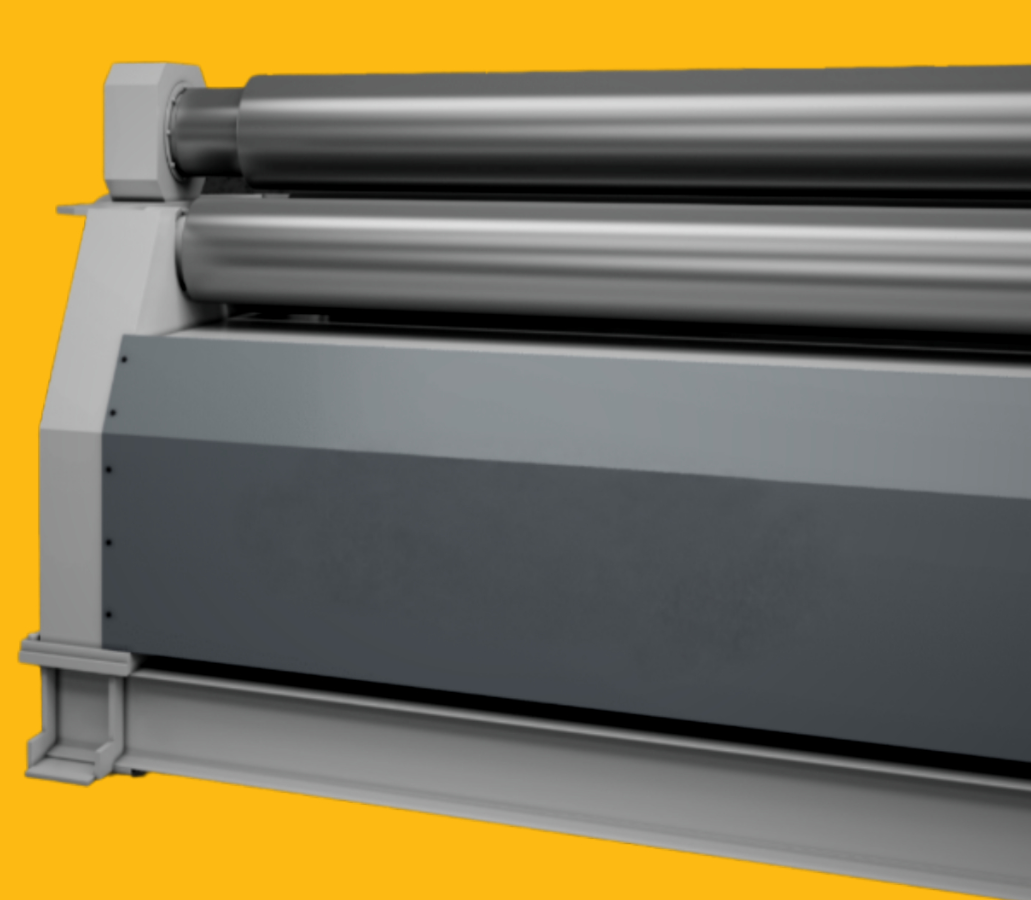

Inspecting the Plate Rolling Machine
The process of plate bending involves the use of lubricants, as well as the presence of residue left behind post-rolling and broken
or cut-down parts of the steel plates that were previously rolled. Before delving into the inspection process, it is essential to
understand the various components of a plate rolling machine.
### Components of a Plate Rolling Machine:
- **Bearings**: These components support the moving parts of the machine and are designed to reduce friction during operation.
- **Gears and Shafts**: Gears and shafts are responsible for transmitting power and motion to the different areas of the machine.
- **Rollers**: Rollers are the primary components that form and shape the metal plates as they are fed into the machine.
- **Frame**: The frame serves as the structural body of the machine, providing stability and support.
- **Hydraulic Systems**: These systems control the rotation of the rollers at varying speeds and pressures, enabling the machine to
achieve the required angles during the rolling process.
- **Electronics and Electrical Systems**: These systems are responsible for transmitting power and allowing the operator to control
the machine via the console.
- **Plate Feeding and Handling System**: This component is designed to load and feed the metal plates into the rolls of the machine.
- **Lubrication System**: The lubrication system ensures that the machine operates with minimal friction, contributing to a smooth
and efficient work process.
### Daily Inspection Procedures
Before commencing work during your shift, it is crucial to clean the machine thoroughly and inspect it for any residue or broken parts.
Additionally, you should check the condition of the rolls. To perform a comprehensive daily inspection, follow these steps:
1. **Turn off the plate rolling machine** before beginning the inspection.
2. **Inspect the machine** for any residue left from the previous shift or day.
3. **Check for abnormalities** on the various parts of the machine.
4. **Ensure that the tightening screws** are securely fastened.
5. **Inspect the brakes** and confirm that they are set to normal for reliable operation.
By performing this basic inspection every day before starting your work shift, you ensure that the machine is in optimal condition.
While this may seem like a routinecleanliness task, it is a necessary step to maintain the machine's functionality. Once this inspection
is complete, you can proceed to take the necessary precautions to maintain your plate rolling machine effectively.
Precautionary Protocols for the Maintenance of Plate Rolling Machines
Operators often overlook the manuals provided with machinery, assuming that the knowledge passed down from experienced
operators is sufficient. However, this assumption can lead to critical gaps in understanding, particularly regarding the finer details
and essential safety measures.
New operators may not be fully aware of the specific warnings and recommendations related to cleaning and maintaining the machine.
To ensure efficient and safe cleaning, it is imperative to strictly adhere to the guidelines outlined in the machine's manual. Below are five
key instructions that should be followed during the maintenance of a plate rolling machine:
1. Avoid using solvents or inflammable materials as they can cause direct harm to the machine.
2. Ensure that grease does not disperse into the air, as this can lead to contamination or other operational issues.
3. After cleaning the guards with a metal cleaner or polish, ensure they are restored and properly refitted. Deactivated guards significantly
increase the risk of injuries.
The points discussed above cover the routine and basic cleaning and maintenance procedures. However, the next step involves performing
a detailed inspection before commencing work.
1. **Detailed Inspection Before Rolling the Plate**
Before commencing the rolling process, it is essential to conduct a comprehensive inspection of the machine to ensure all components
are in proper working condition Any deformities, missing, broken, or damaged critical parts must be identified and addressed. If any
issues are detected, the machine should not be operated until the necessary repairs or replacements are completed.
The following steps outline the detailed inspection process:
- **Inspection of External Components**: Examine the external parts of the machine for any signs of deformity or damage that could
affect its performance.
- **Indicator Lights and Controls**: Verify that the indicator lights are functioning normally. Test the operation switch, limit position,
and console to confirm they are in proper working order.
- **Pipe and Tube Integrity**: Inspect all pipes and tubes for leaks, including those connected to the oil pumps and cylinders. Address
any leaks promptly to prevent operational issues.
- **Roller and Brake Functionality**: Ensure the rollers are operating smoothly and that the brakes are in good condition.
- **Pressure Gauge Verification**: Confirm that the pressure gauge is displaying accurate readings and is in proper working condition.
- **Lubrication**: Apply lubrication to all parts that require manual lubrication to maintain smooth operation and reduce wear.
2. **Daily After-Work Maintenance**
Maintaining the machine in optimal condition after each work shift is crucial for ensuring its longevity and reliability. By leaving the machine
in better condition than it was at the start of your shift, you set a standard of care that encourages the next operator to follow the same practices.
The following maintenance tasks should be performed daily after work:
- **Safety Device Check**: Verify that all safety devices are functioning as intended to ensure a safe working environment.
- **Braking Mechanism Inspection**: Confirm that the braking mechanisms are operating properly to prevent any accidents during use.
- **Residue Removal**: Clean the machine thoroughly by removing all residue from the post-rolling process. Use a dry cloth, and ensure
that industry-standard neoprene or PVC gloves are worn during the cleaning process.
By adhering to these inspection and maintenance procedures, you contribute to the machine's efficiency, safety, and overall operational reliability.
Weekly maintenance of the plate rolling machine is a critical procedure to ensure its safe and efficient operation. This inspection is
particularly important because the filters may or may no become filled within a week, making regular checks essential. The following
steps outline the necessary actions to be taken during this maintenance process:
1. Verify the proper functioning of the emergency stop mechanism to ensure it operates effectively in case of an emergency.
2. Inspect the side protectors to confirm they are securely in place and free from damage.
3. Examine the rear protector to ensure it is functioning correctly and providing adequate protection.
4. Monitor the filter's indicator, which signals whether it is clogged. It is important to note that the yellow indicator light on the vacuum
switch indicates a clogged filter, necessitating its immediate replacement.
By following these steps, the machine can be maintained in optimal working condition.
Monthly maintenance of the plate rolling machine is a critical practice to ensure the equipment operates efficiently and remains
in optimal condition.
Neglecting this routine can result in lakages and the accumulation of month-old residue in hard-to-reach areas, which are
challenging to clean on a daily basis.
By adhering to a monthly maintenance schedule, you can uphold the machine's performance standards and prevent potential
operational issues.
The following steps outline the key aspects of monthly maintenance:
1. **Clean all pipes, tubes, and hydraulic components**: This includes cylinders, valves, motor/pump units, and other pipe and
tubular systems. Regular cleaning ensures there are no leaks and prevents contaminants from entering the machine during
the removal and replacement of components.
2. **Inspect internal and external fittings**: Verify that all fittings are secure and free from leaks or looseness to maintain the
machine's structural integrity.
3. **Replace swollen flexible tubing**: Flexible tubing connecting the pump and system should be inspected regularly. If swelling
is observed, it must be replaced immediately to avoid further complications.
4. **Monitor the oil level**: Maintaining the correct oil level is essential for efficient energy transmission, conversion, and control
of the machine's operations.
5. **Clean the tank air filter with compressed air**: Regular cleaning of the tank air filter ensures proper airflow and prevents
blockages that could affect the machine's performance.
By following these steps, you can ensure the plate rolling machine remains in excellent working condition and continues to meet
operational standards.
Annual maintenance of the plate rolling machine is a critical process to ensure its optimal performance and longevity. Certain
machine components, such as those that experience gradual wear or filters that accumulate debris over time, require regular
inspection and servicing on an annual basis.
1. **Oil Separator Microfilter Replacement**: When the pressure drop reaches 1 bar, it is necessary to replace the oil separator
microfilter. Alternatively, this replacement should be carried out at least once a year as a preventive measure to maintain the
machine's efficiency.
2. **Hydraulic Circuit Oil Refill**: The hydraulic circuit must be refilled with oil to ensure smooth operation and prevent any potential
damage caused by insufficient lubrication.
3. **Oil Filter Element Replacement**: The oil filter element should be replaced with a new one during the annual maintenance
to ensure the cleanliness of the oil and the proper functioning of the machine's hydraulic system.
These maintenance tasks are essential for preserving the machine's performance and preventing potential issues that could arise
from neglecting these routine checks.
